Archer TX50E

Contact

AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Smoother Experience—75% lower latency ensures ultra-responsive gaming, uninterrupted video chatting, and seamless live streaming
Reliable Connections—Intel^® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
Bluetooth 5.2—The latest Bluetooth technology achieves Faster Speed and Broader Coverage than the previous version
Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
Backward Compatibility – Full support for 802.11ac/a/b/g/n standards

HARDWARE FEATURES
Dimensions	3.7 x 4.8 x 0.8 in (95.2 x 120.8 x 21.5 mm)
Antenna Type	Two High-Gain Dual Band Antennas
Chipset	Intel Wi-Fi 6 Chipset

BLUETOOTH FEATURES
Standards and Protocols	Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0
Interface	F_USB 2.0

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.2/5.0/4.2/4.0
WLAN Signal Rate	5 GHz 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1733 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity	5 GHz : 11ax HT160：-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160：-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm
WLAN Transmit Power	5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes	Infrastructure mode
Wireless Security	Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology	DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

OTHERS
Certification	CE, FCC, RoHS

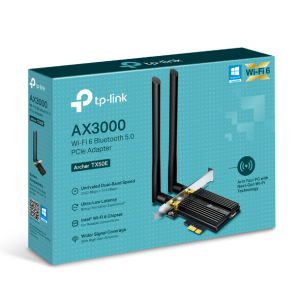

Package Contents	Archer TX50E Two High-Gain Antennas Low-Profile Bracket Standard Bluetooth Header Cable Quick Installation Guide Resource CD
System Requirements	Windows 11/10(64-bit) only
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
