Category: Wireless Antenna & Accessories

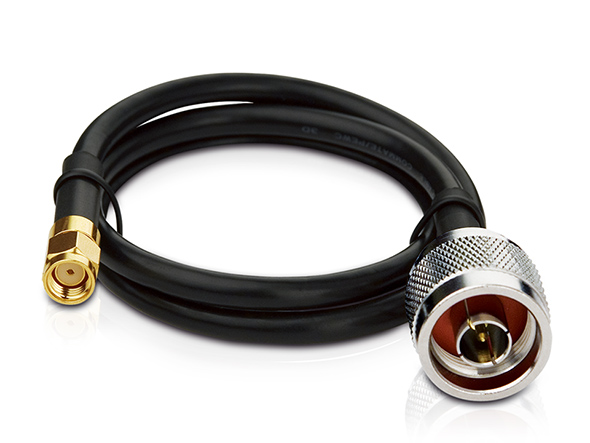

0.5M Low-loss N-Type Male to RP-SMA Female Pigtail Cable

Compliant with 2.4GHz 802.11 n/g/b & 5GHz 802.11 n/a
Weatherproof cable designed for outdoor exposure
Manufactured using 0.5m low loss cable providing better performance in the 5GHz & 2.5GHz applications and suitable for the same use as LMR^®-200^[1]
N-Type Male to RP-SMA Female connector, applicable in most connections between wireless AP/Router and antenna

ANTENNA
Frequency	DC~6GHz
Impedance	50Ω Nominal
Insertion Loss	2GHz 0.7dB 2.5GHz 0.8dB 3GHz 1.0dB 5GHz 1.2dB 5.5GHz 1.3dB 6.0GHz 1.4dB
VSWR(MAX.)	0~3GHz: 1.5:1 Max 3~6GHz: 1.6:1 Max
Connector Type	N-Type Male to RP-SMA Male
Operating Temp.	-10℃~+60℃
Storage Temp.	-40℃~+80℃
Length	0.5m(1.64ft)

0.5M Low-loss N-Type Male to RP-SMA Female Pigtail Cable

Compliant with 2.4GHz 802.11 n/g/b & 5GHz 802.11 n/a
Weatherproof cable designed for outdoor exposure
Manufactured using 0.5m low loss cable providing better performance in the 5GHz & 2.5GHz applications and suitable for the same use as LMR^®-200^[1]
N-Type Male to RP-SMA Female connector, applicable in most connections between wireless AP/Router and antenna
