Category: POE

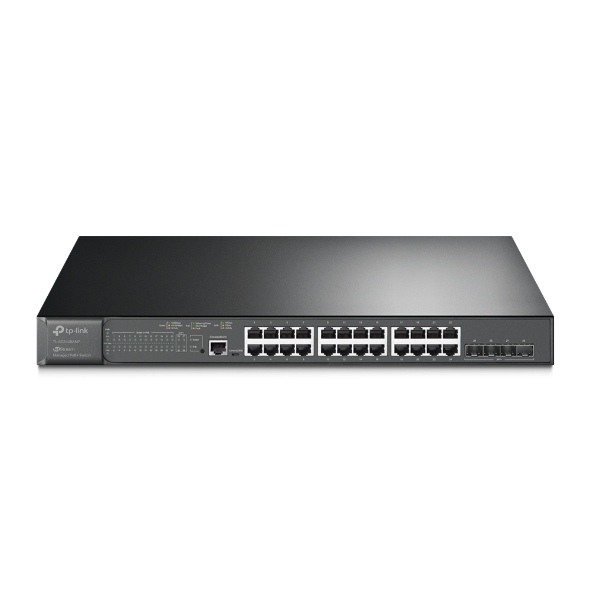

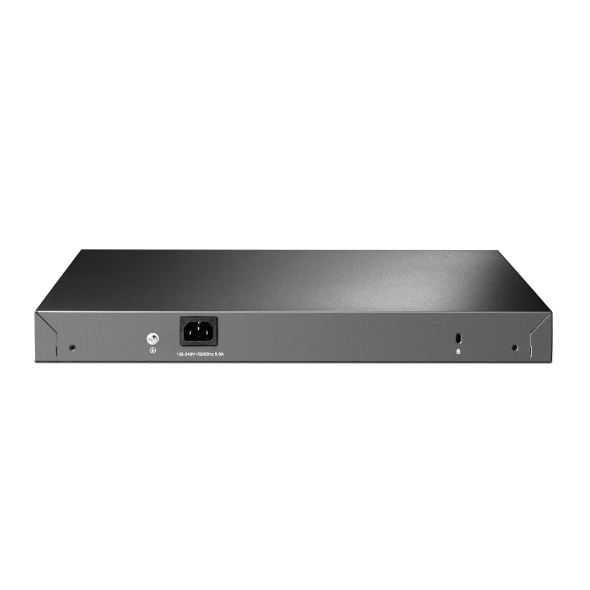

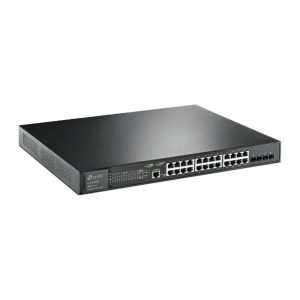

JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W^*.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

TÍNH NĂNG PHẦN CỨNG
Giao diện	• 24× 10/100/1000 Mbps RJ45 Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Số lượng quạt	2
Bộ cấp nguồn	100-240 V AC~50/60 Hz
Cổng PoE+ (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports, up to 30 W per port • Power Budget: 384 W
Kích thước ( R x D x C )	17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Lắp	Rack Mountable
Tiêu thụ điện tối đa	34.4 W (110V/60Hz) ( no PD device connected) 465.8 W (110V/60Hz) ( with 384 W PD device connected)
Max Heat Dissipation	117.38 BTU/h (110 V/60 Hz) (no PD device connected) 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)

HIỆU SUẤT
Switching Capacity	128 Gbps
Tốc độ chuyển gói	95.23 Mpps
Bảng địa chỉ MAC	16 K
Khung Jumbo	9 KB

TÍNH NĂNG PHẦN MỀM
Chất lượng dịch vụ	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP+WRR • Bandwidth Control – Port/Flow based Rating Limiting • Smoother Performance • Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark
L2 and L2+ Features	• Link Aggregation – static link aggregation – 802.3ad LACP – Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol – 802.1d STP – 802.1w RSTP – 802.1s MSTP – STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection – Port based – VLAN based • Flow Control – 802.3x Flow Control – HOL Blocking Prevention • Mirroring – Port Mirroring – CPU Mirroring – One-to-One – Many-to-One – Tx/Rx/Both
L2 Multicast	• IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave – IGMP Snooping Querier – IGMP Authentication • IGMP Authentication • MLD Snooping – MLD v1/v2 Snooping – Fast Leave – MLD Snooping Querier – Static Group Config – Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile
VLAN	• VLAN Group – Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 7 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN (QinQ) – Port-Based QinQ – Selective QinQ • Voice VLAN
Access Control List	• Time-based ACL • MAC ACL – Source MAC – Destination MAC – VLAN ID – User Priority – Ether Type • IP ACL -Source IP – Destination IP – Fragment – IP Protocol – TCP Flag – TCP/UDP Port – DSCP/IP TOS – User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy – Mirroring – Redirect – Rate Limit – QoS Remark • ACL apply to Port/VLAN
Bảo mật	• IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding – 512 Entries – DHCPv6 Snooping – ND Detection – IPv6 Source Guard: 100 Entries • DoS Defend • Static/Dynamic Port Security – Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control – kbps/ratio control mode • 802.1X – Port base authentication – Mac base authentication – VLAN Assignment – MAB – Guest VLAN – Support Radius authentication andaccountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications – DHCPv6 Client – Ping6 – Tracert6 – Telnet (v6) – IPv6 SNMP – IPv6 SSH – IPv6 SSL – Http/Https – IPv6 TFTP
L3 Features	• 16 IPv4/IPv6 Interfaces • Static Routing – 48 static routes • Static ARP – 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay – DHCP Interface Relay – DHCP VLAN Relay • DHCP L2 Relay
Quản lý	• Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 – Trap/Inform – RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log
Advanced Features	• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • ZTP (Zero-Touch Provisioning)**
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB

KHÁC
Chứng chỉ	CE, FCC, RoHS
Sản phẩm bao gồm	• TL-SG3428XMP Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
Môi trường	• Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W^*.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
